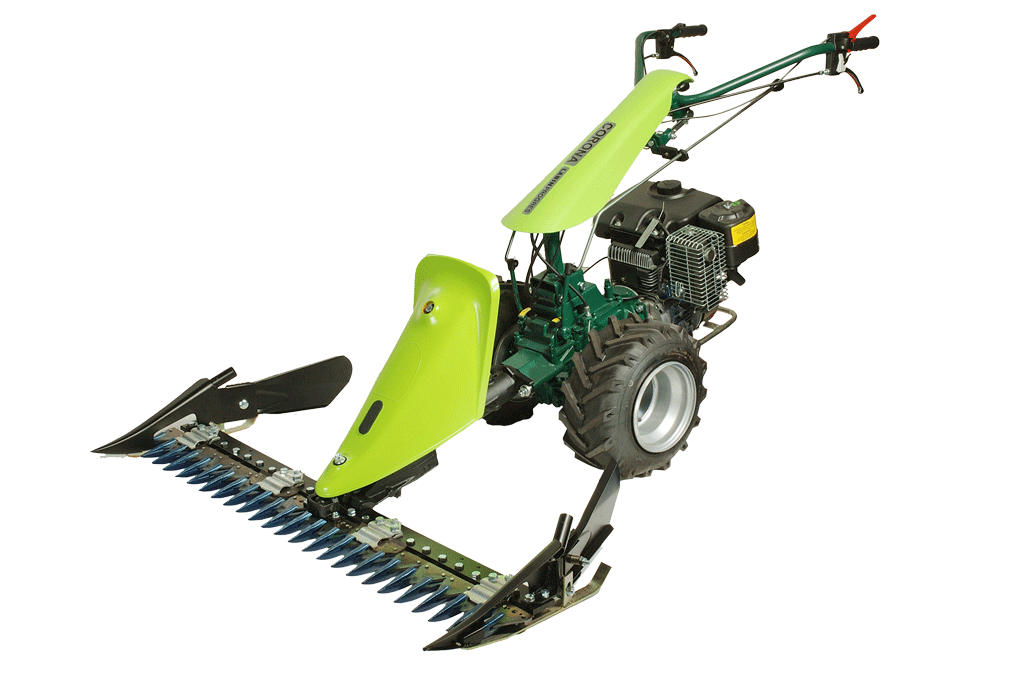

Motor mower Corona is available in options, with diesel engine Lombardini-15LD350 5.00 kW, gasoline engine Kohler CH395 power 7.00 kW, Kipor 178F diesel engine. The gearbox has four speeds, three forward and one reverse. Corona has a differential gear which can be blocked by a locking device located on the steering levers. Mowing width can be adjusted to 110 or 127 cm, depending on working conditions. Its main use is for mowing grass, fodder crops, medicinal herbs and grains. Corona is particularly suitable for operating in highland areas, where massive mechanization can not operate.
Choose your Section
Characteristics
TECHNICAL DATA
Engine:
LOMBARDINI
Type: 15LD350, 4 stroke diesel, air cooled
Power KW / HP: 5.00 / 6.8
Rated speed (rpm): 3600
Starter: recoil
Engine:
KOHLER
Type: CH 395, 4¬ stroke gasoline, air cooled
Power KW / HP: 7.00 /9.5
Rated speed (rpm): 3600
Starter: recoil
Engine:
KIPOR
Type: 178F, 4 stroke diesel, air-cooled
Power KW / HP: 4.5 / 6.1
Rated speed (rpm): 3600
Starter: recoil, electric start
Clutch:
dry clutch with manual control
Transmission
2 forward speeds and 1 reverse
Drive axle:
Differential with unlocking possibility on the left and the right wheel through levers on handlebars.
Handlebars
adjustable in height
Wheels
16x6,5-8’’, 5.00x10”
Safety device:
MOTOR-STOP shuts down the engine immediately, thus preventing any possible accident, should the handlebars accidentally slip out of the operator’s hands.
Weight
150 kg
Mowing bar
112-167 cm
OPTIONAL EQUIPMENT
Wheels 5.00X10''
DOWNLOADS
Motor mower Corona is available in three options, with diesel engine Lombardini-15LD350 5.00 kW, Kohler gasoline CH395 engine 7.00 kW, Kipor diesel 178 F with 4.5 kW power.
